Xtreme Performance Grease with PTFE (L80)

Nulon Xtreme Performance Grease with PTFE(L80) is a high quality, water resistant, extreme pressure grease lubricant. L80 lithium grease with polytetrafluoroethylene (PTFE) safely replaces most single purpose grease products. L80, with its extreme resistance to water washout and wide temperature range, excels in every performance requirement, extending lubricating intervals, providing residual lubrication and increasing component life.

The Xtreme Performance Grease with PTFE (L80) to use where others fail. L80 is a blend of Polytetrafluoroethylene (PTFE) fluorocarbon particles in a specially prepared lithium-based, water-repellent grease. L80 can be used in almost any greasing application to improve lubrication and reduce temperature and wear.

Pack sizes

450g
500g

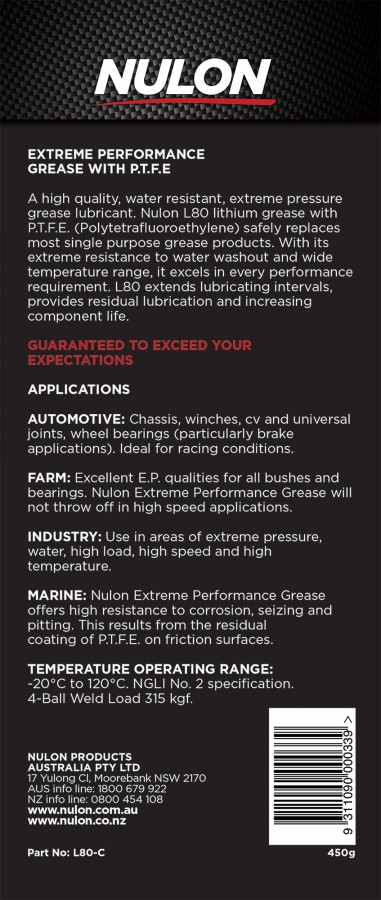

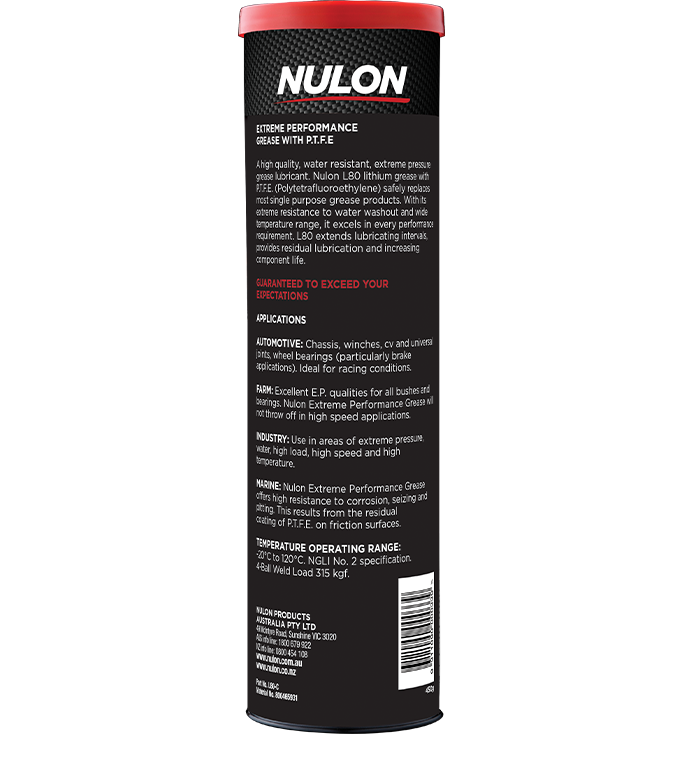

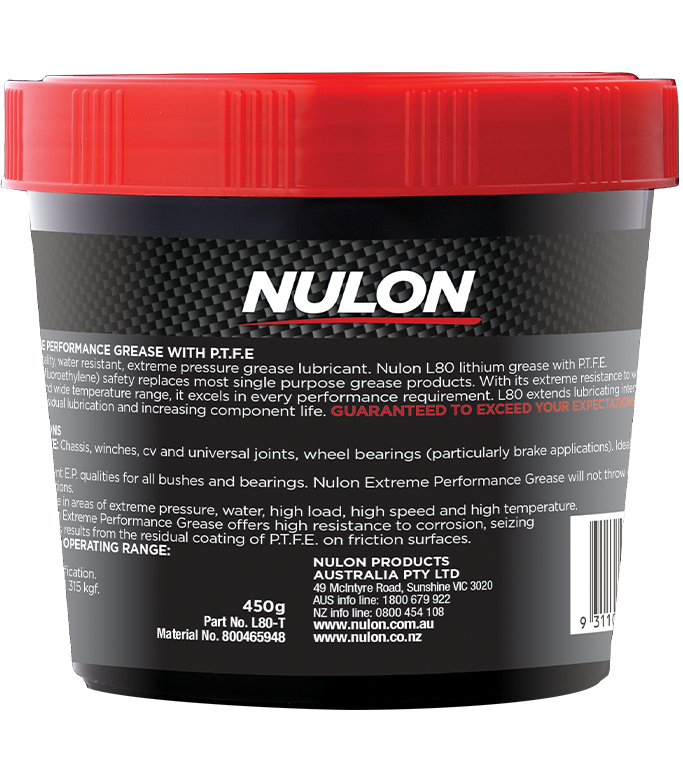

Xtreme Performance Grease with PTFE L80-C Xtreme Performance Grease with PTFE L80-C Rear Xtreme Performance Grease with PTFE L80-T

L80 keeps water and dust out while a plating of PTFE is applied to the mating surfaces under working conditions. Seal performance is improved and operating temperature reduced, resulting in less grease "throw". L80 is applicable to the majority of situations specifying grease lubrication, especially in high pressure, water and salt-water conditions including wire ropes.

L80 has a continuous temperature operating range of -9°C to 150°C.

L80 provides a residual lubrication, which is added insurance, combined with savings through less wear and downtime, making it an economical benefit. Smoother running, increased efficiency and prolonged machinery life, less labour and less volume of lubricant, all indicate higher profits. Where L80 has been used on a continuous basis, seizing and pitting will not occur on the friction surfaces.

The grease to use where others fail!

Typical Properties

Tests ASTM Nulon L80
NLGI N° 2
Soap Type Lithium 12 Hydroxystearate
Colour Dark red
Texture Smooth, buttery
Penetration @ 25°C D217
Unworked D217 290
Worked, 60 strokes D217 275
Worked, 10,000 strokes D217 292
Change % D217 1.06
Dropping Point °C D2265 190
Roll stability D1831
Penetration change % +12
Leakage, wheel bearing D1263
65g packed, 163°C g 1g
Water washout @ 80°C % D1264 3.5
Oil separation D1742
24 hours @ 25°C kPa 2
Oxidation stability D3336
Pressure drop @ 100 hour kPa 15
Pressure drop @ 500 hour kPa 70
Lubrication life, bearing N° 204 D336
10,000 rpm, 163°C, hours 125
Rust prevention rating D1743 1
Timken OK load, kg D2509 23
4 Ball EP test D2596
Load wear index 40
Weld point, kg 290
1200 rpm @ 75°C scar, m .034
Ball joint test D3428
Brine sensitivity Pass
Torque stability Pass
Base oil, cst @ 40°C D445
Base oil, cst @ 100°C D445 14
